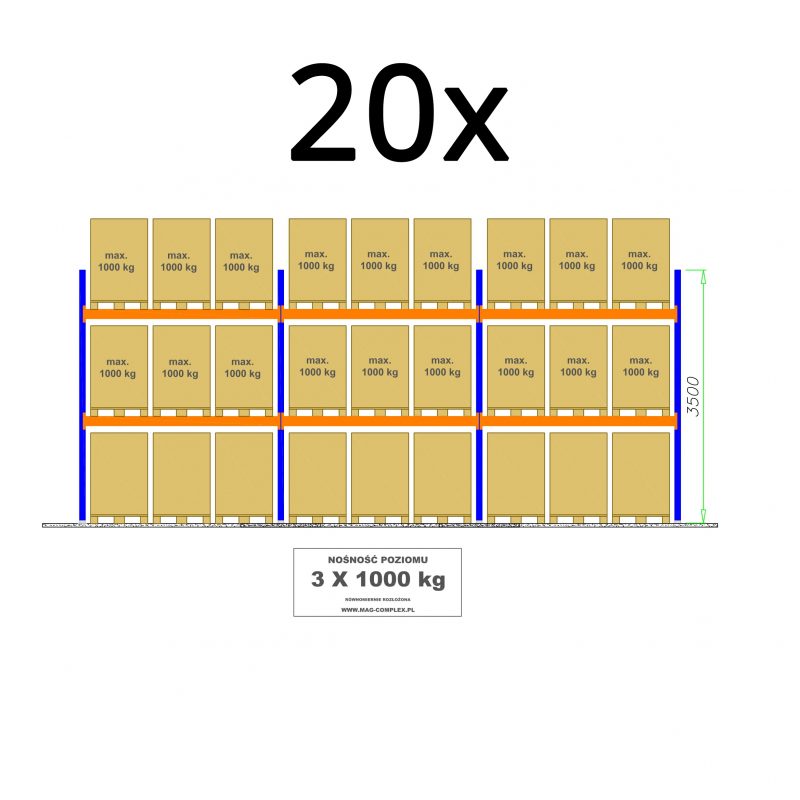

BC5 pallet rack L=168800mm 540 pallets–1000kg 0+2

The BC5 set includes:

• 80 complete frames, height 3500 mm x depth. 1100mm
• 240 beams (traverses) 2700 mm load capacity 3x1000kg
• 160 anchors 120 mm galvanized
• Stickers with a load capacity of 3x1000kg
• Beam protection
• Pallet rack assembly instructions
• Painting: high-quality epoxy coating
• Level adjustment with 50 mm increment

The pallet rack (set B65) has a Declaration of Conformity necessary for storing goods.

A system for storing light and heavy pallets. Its characteristic features are: reliable and stable construction (safety factor 1.4), high quality and a large variety of accessories. This allows for optimal warehouse planning in accordance with the individual needs of the user.

Supporting frame – composed of two columns, bracings (diagonals) and footings, ensuring excellent buckling and flexural-torsion stiffness. The frames are assembled with screws, which ensures low repair costs in the event of damage by forklifts. Each connection is secured with a self-locking nut. The variety of frames allows you to optimize the structure and achieve a height of up to 30 m and a load capacity of spans up to 45 tons.

Pole – cold bent, strengthened by crushing, 12 folds giving exceptional stiffness, width 85 mm, sheet thickness from 1.75 mm to 2 mm.

Bracing (diagonal) – connected using screws with a semi-closed profile, made of galvanized sheet metal.

Feet – galvanized, hot-dip galvanized, each time converted into loads transferred from the column to the floor for even distribution of loads. Each foot is attached to the floor with a very durable M12x100 anchor.

Bar – composed of closed profiles and connectors with special hooks.

Perforation – special perforation that can only be made on CNC machines with very small manufacturing tolerances, giving the structure extraordinary rigidity.
